Item No. Z5

Hydraulic Height Adjustable Drafting Stand


- The hydraulic system has been adjusted to a
   balanced point according to its loading weight.

- The surface does not sink or shake when the pedal
   is not pressed.

- Its strong structural design and low center of
  gravity create a stable and safe drafting stand.

-Compatible board sizes: A1, B1, A0







Functions and Details

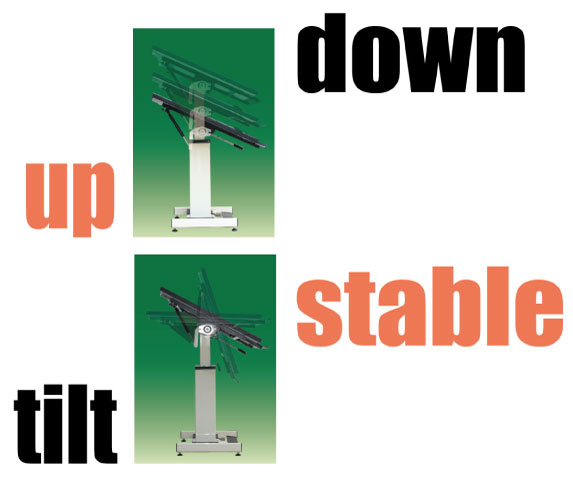

The hydraulic system controls the tilt angle and height adjustment.

Tilt angle:
Release the angle lock and the angle will slowly rise up. Simply pull the angle lock back when you have reached the desired angle required.

Height:
UP: To raise the board, simply lift it.
Down: Press the pedal and adjust the surface to the
            desired height and release the pedal when
            finished.

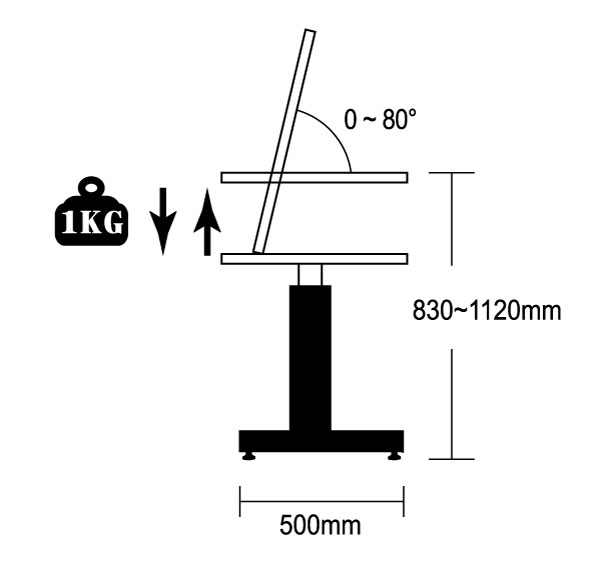

Tilt angle:0°~80°

Height adjust:830~1120mm

Floor surface:510x500mm

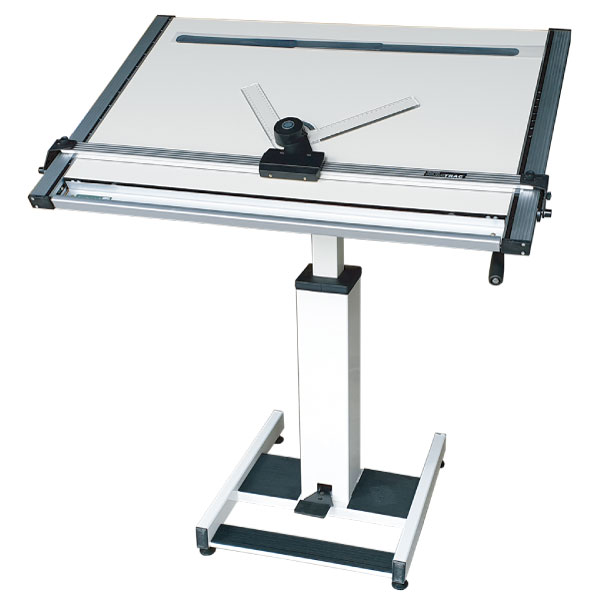

This is an example of how the stand goes with 334DM Paratrac drafting board and 300DH drafting head.
