173PR  Professional Drafting Table  (With R1 Stand)

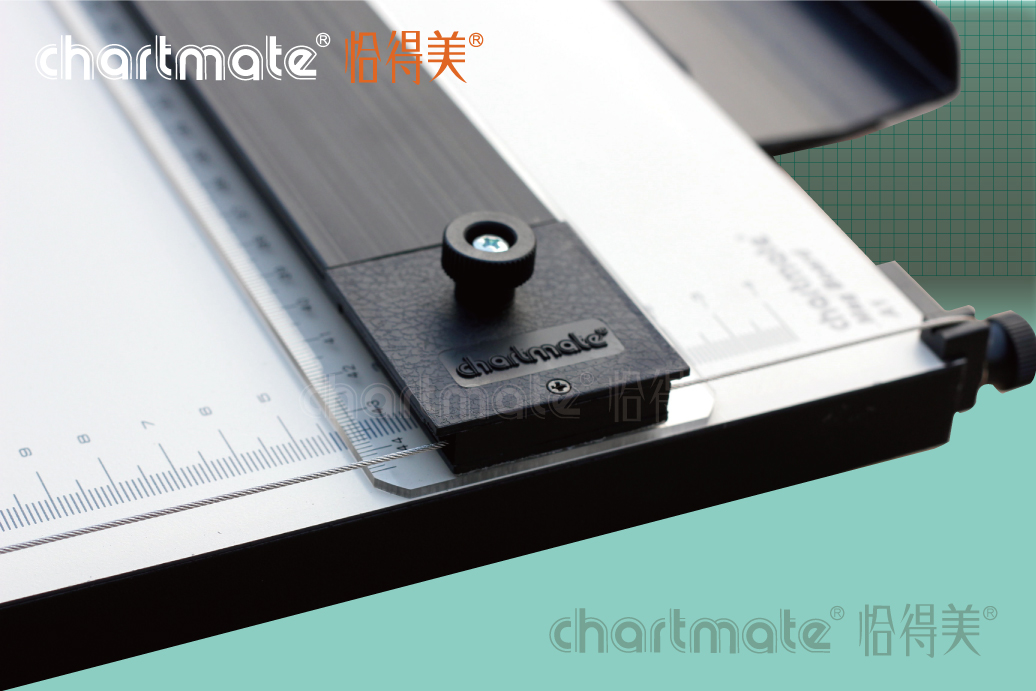

【Paraedge with plastic grip】

1. High quality precision made Japanese bearing, Stainless steel, 7 strand-7 ply cable for added durability and accuracy.

2. Patented cable bracket system, no cable mars on upper side of drawing board, provides un-interrupted triangle vertical line drawing.

3. Marked scales (mm) are printed on straightedge with special ink which prevents the scales to be wipe off from alcohol solvent.

4. Built in brake and adjustable angle system

5. Stainless steel mounted on the side of the acrylic to maintain it's accuracy and durability (Optional)



【Magnetic Board】

1. 18mm thick, water and moisture proof

2. Vertical mark scale (mm)  printed on left side of the board

3. 1m/m thick hard plastic seal on all 4 sides
　

4. Magnetic board include stainless steel press strips (27m/m wide) to prevent damage during paper remove

5. Pencil tray and Nylon bag are included

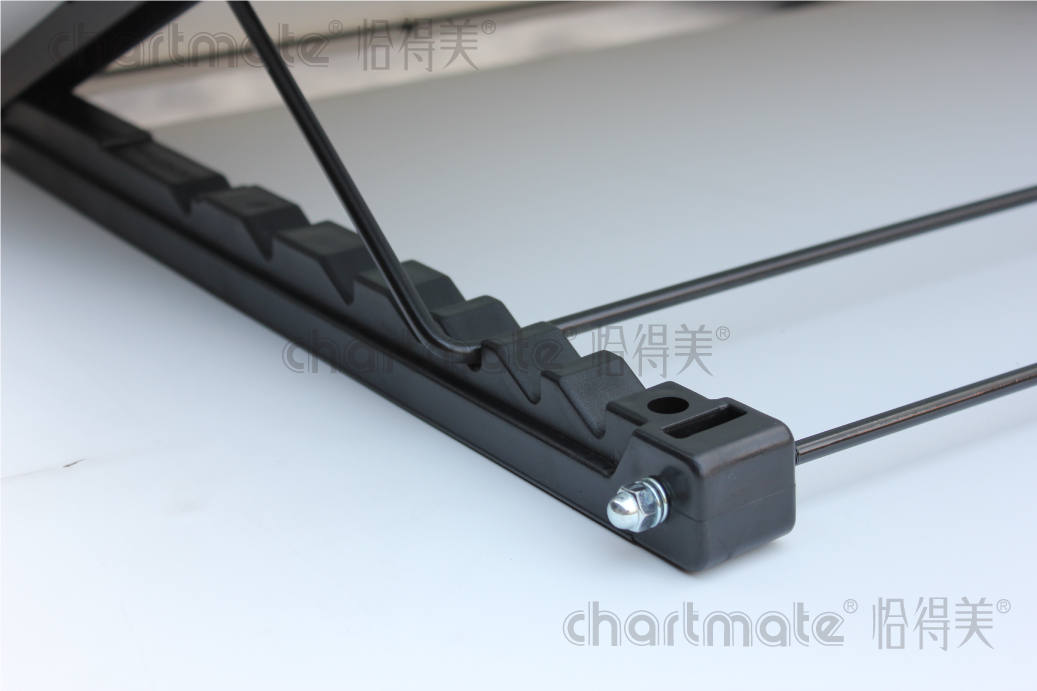

【R1 Stand】

1. Ratchet design provides different drawing angle to match your desire drawing position, no screw is require during the process

2. Ratchet stand is made of plastic (ABS), prevent it from rusting and cracking

3. Powder coating and reinforces structure design, provide a strong, rust free ratchet stand.
　
