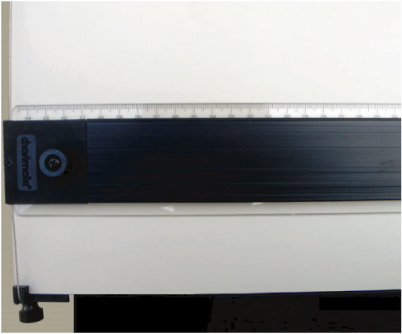

171PR Plastic Grip PARAEDGE |
|
|
Specification: |

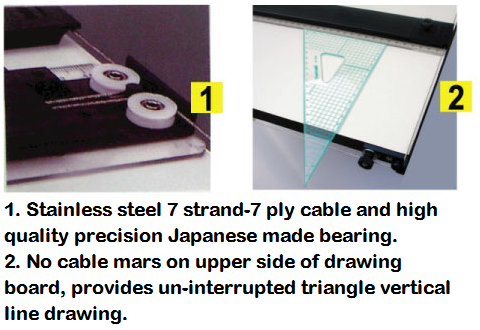

1. Patented cable bracket system, no
cable mars on upper side of drawing board, provides un-interrupted
triangle vertical line drawing.
2. Built in brake and adjustable angle
system 3. Stainless steel, 7 strand-7 ply cable for added durability and accuracy.
5. Marked scales (mm) are printed on straightedge with special ink which prevents the scales to be wipe off from alcohol solvent.
6. Stainless steel mounted on the side of
the acrylic to maintain it's accuracy and durability (Optional) |
|
|
|
|
|
Item No. | Compatible Board |
171PR-45 | 30X45CM |
171PR-60 | 45X60CM |
171PR-90 | 60X90CM / 66X90CM |
171PR-105 | 75X105CM |
171PR-120 | 90X120CM |
